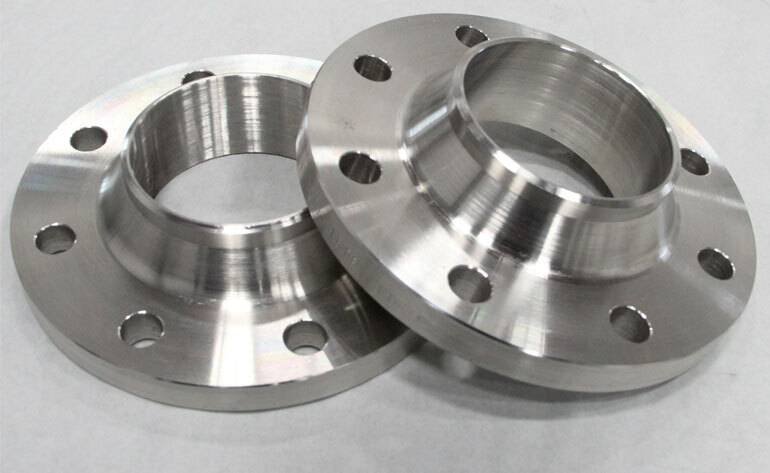

Monel 400/K400 Flanges

ASTM B564 400 Monel Flanges, Monel Alloy 400 Raised Face Flange, UNS N04400 Flanges, Monel K400 Flanges, Monel 400 Flanges, Monel Alloy 400 Threaded Flange, ANSI B16.5 Alloy 400 Pipe Flanges, Monel 400 Flanges Manufacturer in Mumbai, India.

Monel 400, also known as K400, is a versatile and high-performance nickel-copper alloy known for its exceptional corrosion resistance, particularly in seawater, chemical environments, and high-temperature conditions. The alloy is composed of approximately 63% nickel and 29% copper, with small amounts of iron, manganese, carbon, and silicon. Due to its excellent resistance to general corrosion, pitting, and stress corrosion cracking, Monel 400 is widely used in industries such as marine, chemical processing, power generation, and aerospace. The alloy's strength, combined with its resistance to corrosive environments, makes it ideal for critical applications, including heat exchangers, pumps, valves, and pipe fittings.

Sterlite Metal Industries is a leading manufacturer, stockist, and exporter of Monel 400/K400 flanges. These flanges are essential components used to connect pipelines, valves, and other equipment in a wide range of industries. Sterlite Metal Industries produces Monel 400 flanges in various types, including weld neck, slip-on, blind, threaded, and socket weld, to meet diverse customer requirements. The company specializes in delivering high-quality, durable, and corrosion-resistant Monel 400 flanges that meet international standards, ensuring reliable and long-lasting performance in demanding applications. Each flange undergoes stringent quality control measures to ensure they meet precise dimensional specifications and performance standards.


 Monel 400/K400 Flanges

The Monel 400/K400 flanges manufactured by Sterlite Metal Industries are known for their exceptional strength and corrosion resistance, even in highly aggressive environments. These flanges are particularly well-suited for use in applications exposed to seawater, chemicals, and other corrosive substances, such as in marine environments, offshore platforms, chemical processing plants, and heat exchangers. The alloy’s ability to maintain its mechanical properties in high-pressure and high-temperature applications further enhances the reliability and safety of the systems in which they are used. Sterlite Metal Industries ensures that each flange is manufactured to the highest standards, offering superior performance for a wide range of industrial processes.

As a global exporter, Sterlite Metal Industries supplies Monel 400/K400 flanges to numerous countries around the world, including Oman, Qatar, Kuwait, Spain, UAE, Saudi Arabia, Japan, Germany, the United States, the United Kingdom, South Korea, South Africa, and more. The company’s efficient distribution network ensures that Monel 400 flanges are delivered on time and meet the specific needs of clients across various industries. By maintaining a strong global presence and offering reliable, high-quality products, Sterlite Metal Industries has earned a reputation as a trusted supplier for industries requiring Monel 400/K400 flanges and other specialty alloys.

Specification For Monel 400 / K400 Flanges

Specifications ASTM B564 / ASME SB564
Dimensions ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size 1/2″NB TO 60″NB
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Sterlite Metal Industries also provides excellent customer service and technical support to ensure that clients select the right Monel 400/K400 flanges for their specific applications. Their team of experts offers guidance on material selection, installation, and maintenance, ensuring that customers achieve the best performance and longevity from their products. Whether clients are working on new construction projects or maintaining existing systems, Sterlite Metal Industries is committed to delivering personalized solutions that meet the highest standards of quality and performance.

In addition to Monel 400/K400 flanges, Sterlite Metal Industries offers a wide range of other specialty alloys, including nickel alloys, copper alloys, and stainless steels, to cater to industries with high-performance requirements. The company’s extensive inventory and expertise in manufacturing high-quality materials make it a one-stop solution for industries that need reliable, corrosion-resistant, and durable products. By continuously focusing on quality, innovation, and customer satisfaction, Sterlite Metal Industries has established itself as a leader in the field of Monel 400 flanges and specialty alloys, delivering solutions to clients worldwide.

Equivalent Grades Of Monel 400 / K400 Flanges

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel 400 / K400 2.4360 N04400 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe

Monel 400 / K400 Flanges Chemical Composition

Grade C Mn Si S Cu Fe Ni
Monel 400 / K400 0.30 max 2.00 max 0.50 max 0.024 max 28.00 – 34.00 2.50 max 63.00 min

400 / K400 Monel Flanges Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel 400 / K400 8.8 g/cm3 1350 °C (2460 °F) Psi – 80,000 , MPa – 550 Psi – 35,000 , MPa – 240 40 %

Ready Stock Of Monel 400 / K400 Flanges Supplier

  • Monel Alloy 400 ASME Flanges
  • ASTM B564 400 Monel Flange
  • Monel Alloy 400 300 LBS Flanges
  • 400 Monel High Hub Blind Flanges
  • Monel 400 150 LBS Threaded Flanges
  • Nickel Alloy 400 Flanges
  • Nickel Alloy 2.4360 Orifice Flange
  • 400 Monel Flanges
  • Monel Alloy 400 Spades Ring Spacers Flanges
  • ASME B16.5 Monel K400 Flanges
  • 400 Monel Spectacle Blind Flanges
  • 400 Monel BS Standard Table E
  • 400 Monel Expander Flanges
  • Monel 400 Flanges
  • Monel Alloy 400 Male & Female Flanges
  • Alloy 400 Forged Flanges
  • Monel 2.4360 1500 LBS Screwed Flanges
  • ASME / ANSI B16.5 Monel 400 Flanges
  • Alloy K400 Lapped Joint Flanges
  • 400 Monel Spades Ring Spacers Flanges
  • 400 Monel DIN Flanges
  • Monel N04400 Forged Flanges
  • Monel Alloy 400 Long Welding Neck Flange
  • Alloy 400 Groove Flanges
  • Monel® Alloy K400 BSP Thread Flange
  • 400 Monel Weldo Flanges
  • 400 Monel Alloy Loose Flanges
  • Alloy 400 Nipo Flanges
  • Monel Gr.400 Flanges
  • UNS N04400 Monel RTJ Flanges
  • Grades 400 Monel Flanges
  • Alloy K400 Pipe Flanges
  • Monel Alloy 400 Plate Flanges
  • 400 Monel British Standard Table D Pipe Flanges
  • Monel Alloy 400 Flanges
  • Alloy 2.4360 Tongue Flanges
  • Monel 400 Flat Face Flanges
  • Nickel Alloy 400 NPT Thread Flanges
  • Type 400 Monel Threaded Flange
  • Monel Gr 400 Industrial Lap Joint Flanges

Monel 400 / K400 Pipe Flange Dimensions

AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME)
  • ASME B1.20.1, Pipe Threads, General Purpose
  • ASME B16.1, Cast Iron Pipe Flanges Classes 25, 125 and 250
  • ASME B16.5, Flanges NPS 1/2 Through NPS 24
  • ASME B16.11, Forged Fittings, Socket Welding and Threaded
  • ASME B16.25, Buttwelding Ends
  • ASME B16.36, Orifice Flanges
  • ASME B16.47, Large Diameter Steel Flanges NPS 26 Through NPS 60
  • ASME B31.1, Power Piping
  • ASME B31.3, Process Piping
  • ASME B46.1, Surface Texture (Surface Roughness, Waviness, and Lay)
