Sterlite Metal Industries

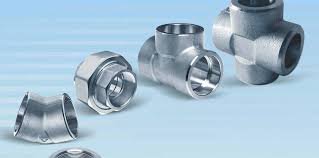

Inconel 625 Pipe Fittings

Inconel 625 Pipe Fittings, UNS N06600 Pipe Fittings, 600 Inconel Buttweld Fittings, Inconel Alloy 600 Pipe Fittings, Inconel 600 Buttweld Fittings, Alloy 600 Butt weld Fittings, ASTM B366 600 Pipe Fittings, Inconel 625 Pipe Fittings Manufacturer In Mumbai, India.

Sterlite Metal Industries is a well-established manufacturer of Inconel 625 Pipe Fittings, offering premium products that meet the highest industry standards. Known for its superior strength, exceptional resistance to corrosion, and high-temperature stability, Inconel 625 is widely used in applications where materials need to withstand harsh conditions. Sterlite Metal Industries specializes in the production and supply of Inconel 625 Pipe Fittings, ensuring that every fitting is produced with precision and quality to meet the specific needs of various industries.

Inconel 625 Pipe Fittings are known for their excellent resistance to oxidation, corrosion, and extreme environments, making them the preferred choice in industries such as aerospace, chemical processing, marine engineering, and power generation. The alloy’s high strength-to-weight ratio and resistance to stress corrosion cracking in aggressive environments, such as seawater and chemical compounds, make it ideal for applications in severe operating conditions. Sterlite Metal Industries produces Inconel 625 Pipe Fittings that are durable, reliable, and capable of withstanding high temperatures and aggressive environments, ensuring their long-lasting performance.


Inconel 625 Pipe Fittings

Sterlite Metal Industries is a renowned exporter of Inconel 625 Pipe Fittings, delivering these high-performance products to clients across the globe. With a commitment to excellence and a strong focus on customer satisfaction, Sterlite Metal Industries has built a wide-reaching network that spans Oman, Qatar, Kuwait, Spain, UAE, Saudi Arabia, Japan, Germany, the United States, the United Kingdom, South Korea, South Africa, and many other countries worldwide. The company’s vast export capabilities ensure that Inconel 625 Pipe Fittings are available to meet the needs of industries operating in various geographical regions and markets.

Due to their remarkable resistance to heat and corrosion, Inconel 625 Pipe Fittings are used in a wide range of industries. These fittings are frequently used in the aerospace industry for exhaust systems and gas turbines, in the chemical processing industry for reactors and heat exchangers, and in marine engineering for seawater systems. The alloy’s ability to withstand high temperatures up to 1,800°F (982°C) without losing strength makes it ideal for applications in harsh environments. Sterlite Metal Industries produces Inconel 625 Pipe Fittings in various sizes and configurations to suit the specific needs of these diverse applications.

Specification For Inconel 625 Pipe Fittings

Inconel 625 Pipe Fittings Standard ASTM B366 / ASME SB366
Inconel 625 Pipe Fitting Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Inconel 625 Pipe Fitting Dimensions Size Range Seamless Butt Weld Fittings: 1/2" - 10", Welded Butt Weld Fittings: 1/2" - 48"
Inconel 625 Pipe Fittings Type Seamless / Welded / Fabricated
Inconel 625 Pipe Fittings Schedule Sch 5 TO Sch XXS.
ASTM B366 Inconel 625 Pipe Fittings Thickness 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.
Grades Inconel 600, 601, 625, 718, 783, 690, x750 Pipe Fittings

Sterlite Metal Industries stands out as a trusted manufacturer of Inconel 625 Pipe Fittings due to its unwavering commitment to quality, precision, and customer satisfaction. The company uses state-of-the-art technology and stringent quality control measures to ensure that every fitting is durable and performs optimally under challenging conditions. With years of expertise in the industry, Sterlite Metal Industries has become a leading name in the manufacturing and supply of Inconel 625 Pipe Fittings, providing customized solutions to meet the specific needs of its global clientele.

As an experienced exporter of Inconel 625 Pipe Fittings, Sterlite Metal Industries is dedicated to ensuring the timely delivery of high-quality products to clients worldwide. Whether you're based in Oman, Qatar, Kuwait, Spain, UAE, Saudi Arabia, Japan, Germany, the United States, the United Kingdom, South Korea, South Africa, or any other part of the world, you can count on Sterlite Metal Industries for reliable, durable, and cost-effective solutions. The company’s vast inventory, along with its international shipping capabilities, ensures that customers receive the best products on time, every time.

Equivalent Grades Of Inconel 625 Pipe Fittings

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 625 2.4856 N06625 NCF 625 NA 21 ХН75МБТЮ NC22DNB4M NiCr22Mo9Nb

Inconel 625 Pipe Fittings Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
Inconel 625 0.10 max 0.50 max 0.50 max 0.015 max – 5.0 max 58.0 min 20.0 – 23.0

Inconel 625 Pipe Fittings Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 625 8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 517 42.5 %

Ready Stock Of Inconel 625 Pipe Fittings

  • Inconel 625 Weldable 1.5D Elbow
  • Inconel® Alloy 625 90° Seamless Elbow
  • Inconel 625 Pipe Fittings
  • Alloy 625 Pipe Fittings
  • Inconel 625 10D Elbow
  • ASME B16.9 Inconel 625 Pipe Nipple
  • Inconel 2.4856 Lap joint Stub Ends
  • 625 Inconel Pipe Fittings
  • 625 Inconel Alloy Pipe Fittings
  • ASTM B366 Inconel 625 Lateral Tee
  • 625 Inconel 180° LR Return Bend
  • Inconel 625 SR Elbow
  • Inconel 625 Buttweld Equal Cross
  • Inconel® Alloy 625 Pipe Fittings
  • Nickel Alloy 625 Pipe Fittings
  • Inconel N06625 Buttweld Fittings
  • Inconel 2.4856 Short Radius Elbow
  • Inconel Alloy 625 Pipe Fittings
  • Type 625 Inconel Seamless Pipe Fittings
  • Inconel 625 Reducing Nipple
  • 625 Inconel LR Elbow
  • Inconel® Alloy 625 Welded Lateral Tee
  • Inconel 625 Reducing Tee
  • 625 Inconel® Alloy Pipe Fittings
  • Inconel Gr 625 Industrial Pipe Fittings
  • UNS N06625 Inconel Swage Nipple
  • Inconel 625 Barred Tee
  • 625 Inconel End Pipe Cap

Inconel 625 Pipe Fittings Dimensional Tolerances

(1) Out-of-round is the sum of absolute values of plus and minus tolerance.
(2) The inside diameter at ends and the nominal wall thicknesses are to be specified by the purchaser.
 IN ACCORDANCE WITH ASME B16.9 – B16.28
All Fittings
90°and 45° Ells and Tees Reducers and Lap Joint Stub Caps 180° Returns Angularity Tol
Nominal Pipe Plane Size (NPS) Outside(1) Diameter at Bevel Inside(1) Diameter at End Wall(2) Thickness Centre-to- End Dimension A,B,C,M Overall Length L Overall Length E Centre-to- Centre Dimension O Back-to- Face Dimension K Alignment at Ends U Nominal Pipe SIze Off Angle Q Off Angle P
1/2 TO 2-1/2 +1/16 ±1/32 Not less than 87-1/2% of Normal Thickness ±1/16 ±1/16 ±1/8 ±1/4 ±1/4 ±1/32 12 to 4 1/32 1/16

-1/32






5 to 8 1/16 1/8
3 TO 3-1/2 ±1/16 ±1/16 ±1/16 ±1/16 ±1/8 ±1/4 ±1/4 ±1/32 10 to 12 3/32 3/16
4 ±1/16 ±1/16 ±1/16 ±1/16 ±1/8 ±1/4 ±1/4 ±1/32 14 to 16 3/32 1/4
5 TO 8 +1/32 ±1/16 ±1/16 ±1/16 ±1/4 ±1/4 ±1/4 ±1/32 18 to 24 1/8 3/8

-1/16









10 TO 18 +1/16 ±1/8 ±3/32 ±3/32 ±1/4 ±3/8 ±1/4 ±1/16  All dimensions are in inches

-1/8






20 TO 24 +1/4 ±3/32 ±3/32 ±3/32 ±1/4 ±3/8 ±1/4 ±1/16

-3/32
